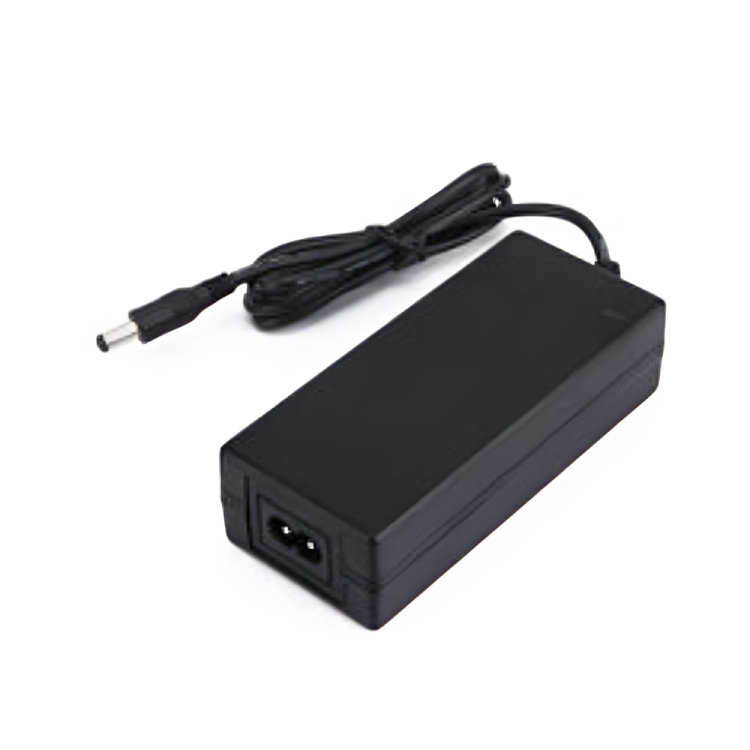

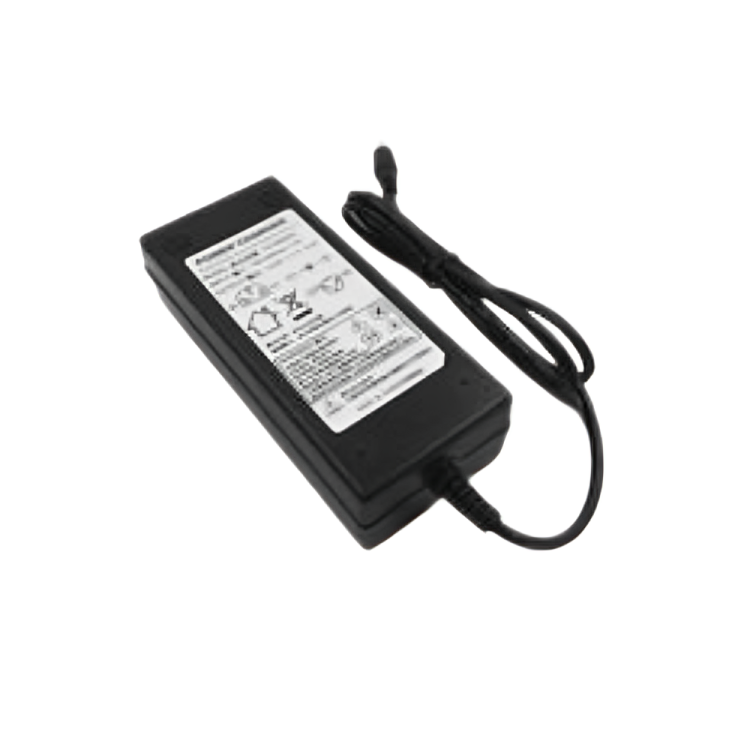

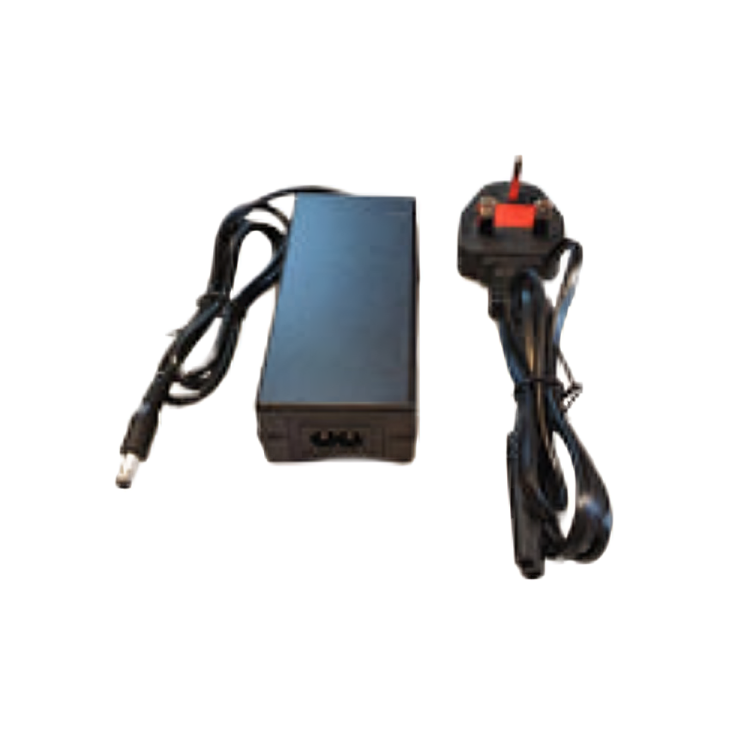

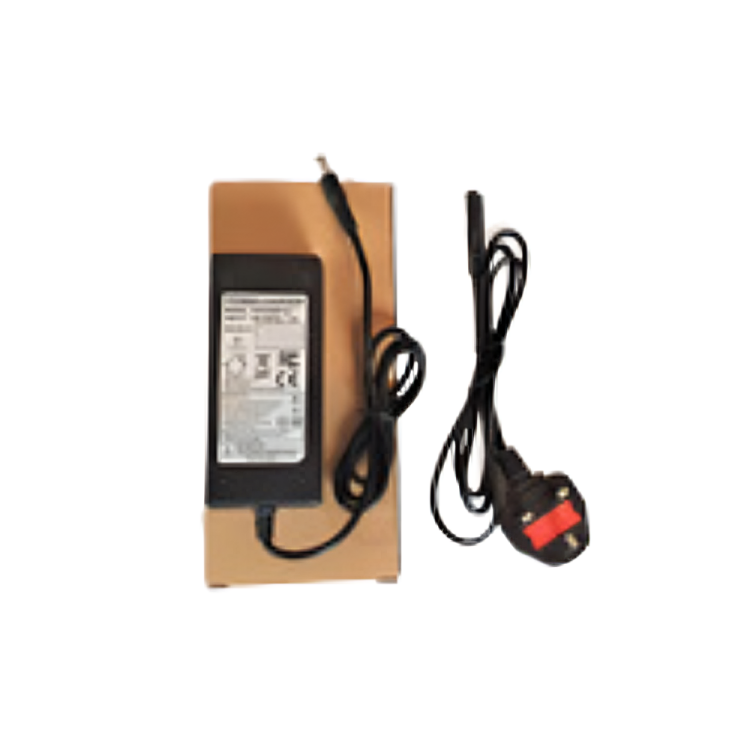

12.6V 8A Lithium Battery Charger - for 11.1V Li-ion/LiPo battery pack; UK, EU plug

Out of stock

12.6V 8A Lithium Battery Charger -  for 11.1V Li-ion/LiPo battery pack;  UK, EU plug Charging voltage: 12.6V CC/CV          green light -  when fully charged or not connected.          red light - charging Protections: constant voltage, constant current, over-voltage, over current protection function; indicator light conversion;...
-
+
£44.90

Click Here to be notified by email when 12.6V 8A Lithium Battery Charger - for 11.1V Li-ion/LiPo battery pack; UK, EU plug becomes available.

12.6V 8A Lithium Battery Charger -  for 11.1V Li-ion/LiPo battery pack;  UK, EU plug

Charging voltage: 12.6V CC/CV

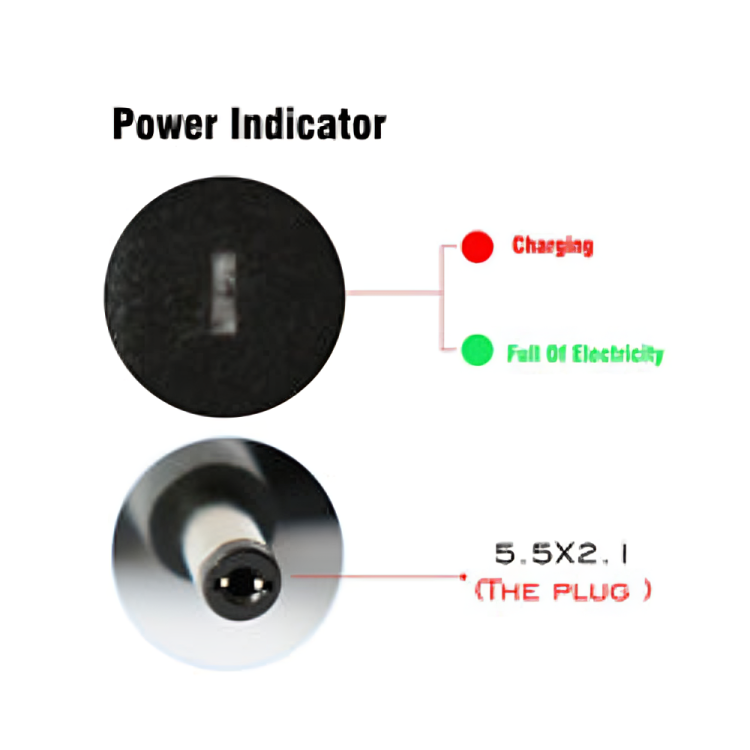

         green light -  when fully charged or not connected.

         red light - charging

Protections:

constant voltage, constant current, over-voltage, over current protection function; indicator light conversion; automatic recovery.



Connectors:  default is DC 5.5x2.1 mm

                  but it can be modified upon request. Available XT30, XT60, Deans, Aviation 2P, 3P, and more. Ask before you order.


Output current -  8A, constant current charging, the indicator light is red
Conversion current, 300mA, after full conversion, the indicator light is green
Efficiency, >80% (maximum output voltage, full load)
DC voltage adjustable range, 0-12.6V
Input voltage range, 220~ 240VAC; 47 ~ 63Hz;
Input current, 0.03A/230V
Overload protection, 105%~150%, Type: FOLDBACK current limit output Reset: automatic recovery
Temperature coefficient, ±0.03% °C (0 ~ 50 °C) OUTPUT
Working temperature, humidity, -10 ° C ~ +50 ° C, 20% ~ 90% RH
Storage temperature, temperature, -10 ° C ~ +60 ° C, 20% ~ 90% RH
Dimensions, 115 × 48 × 28mm
Weight, 160G
