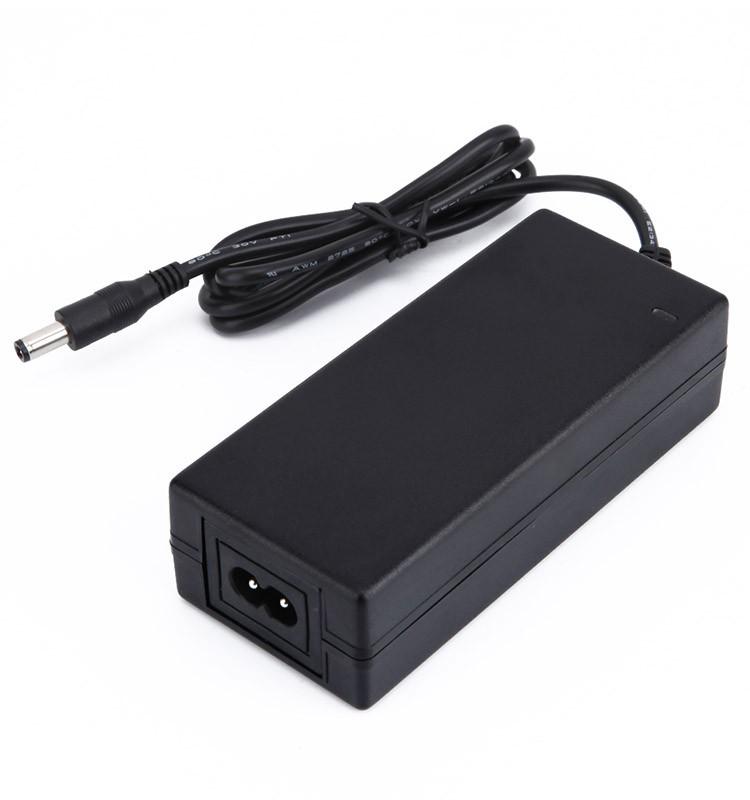

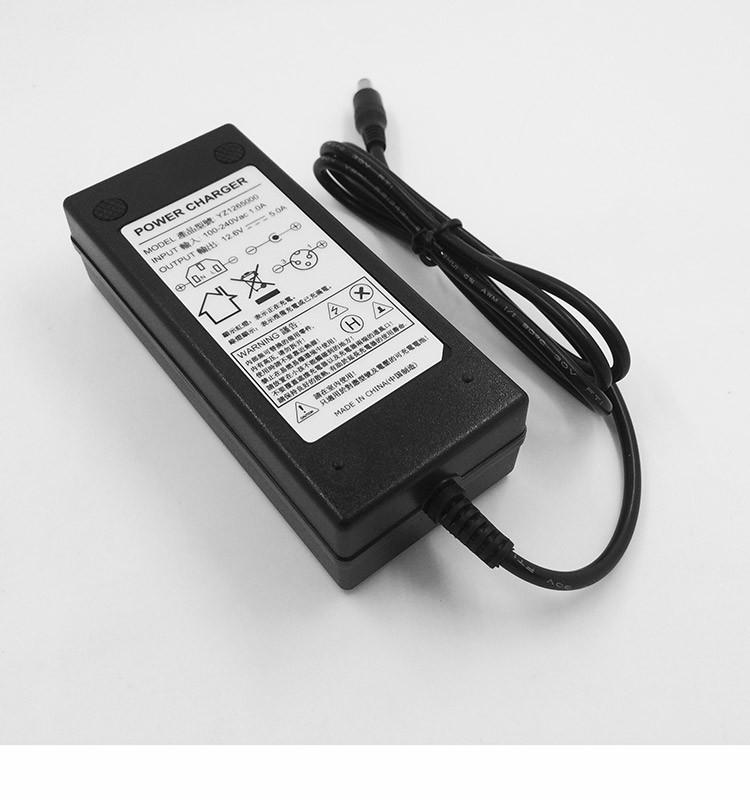

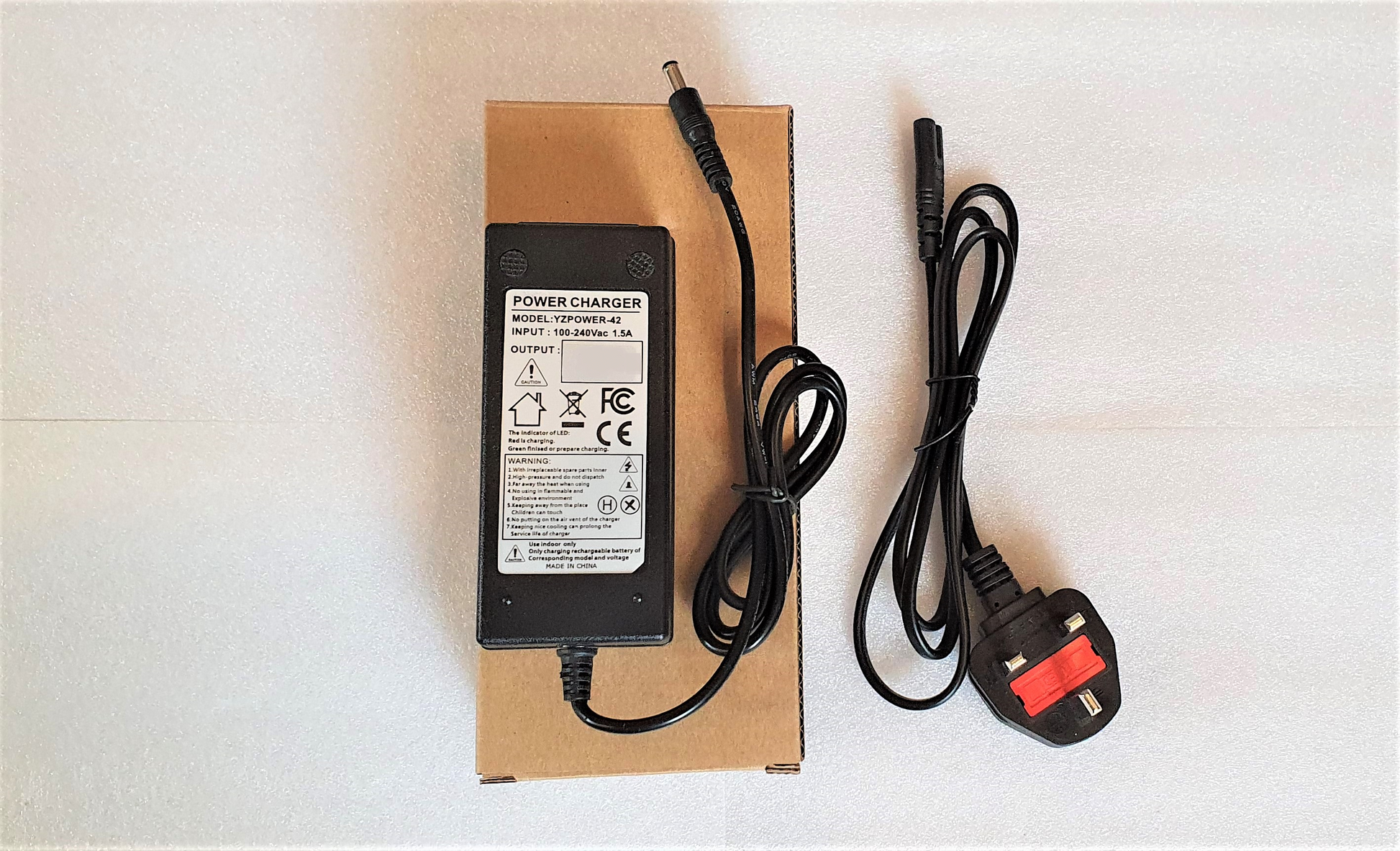

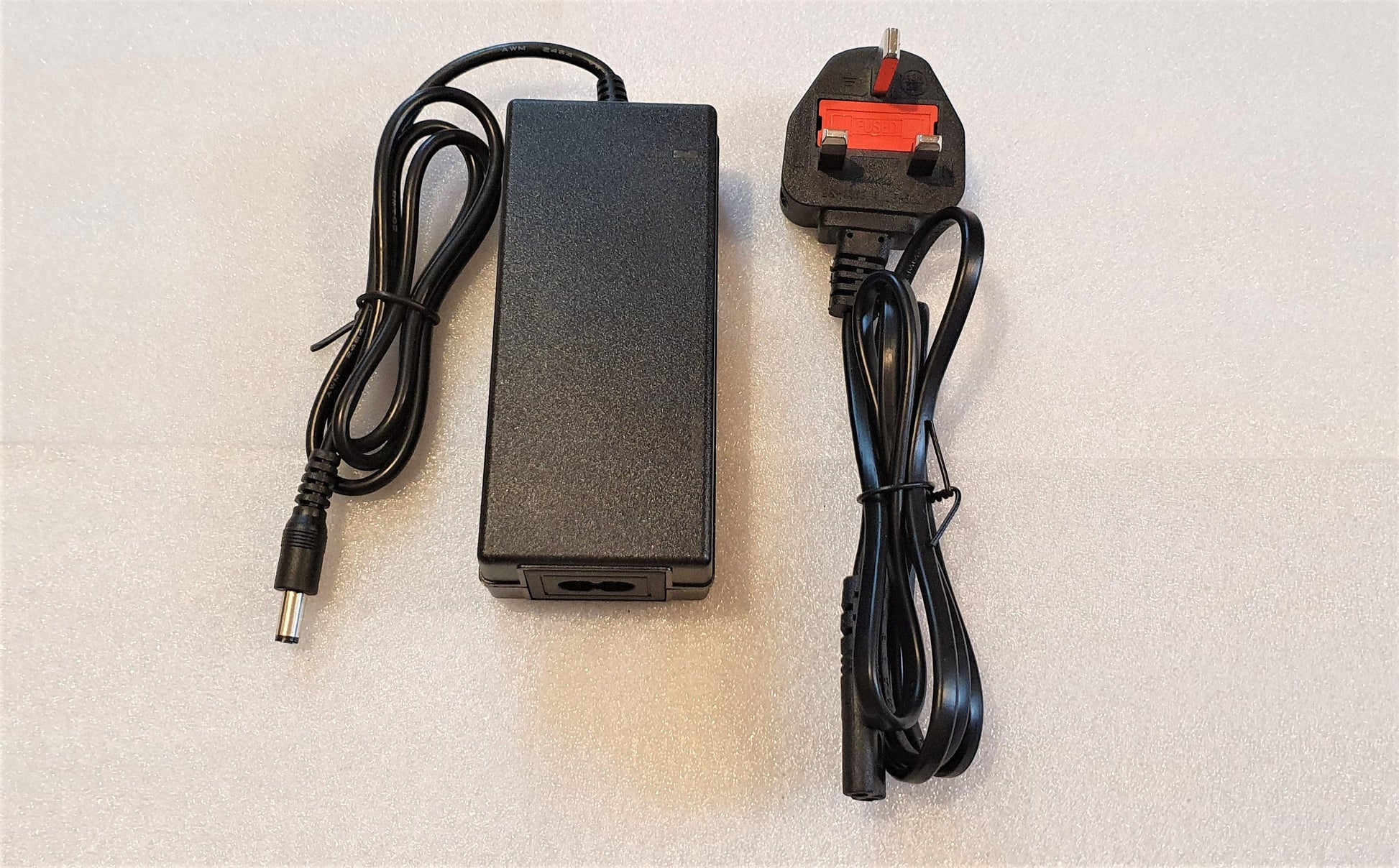

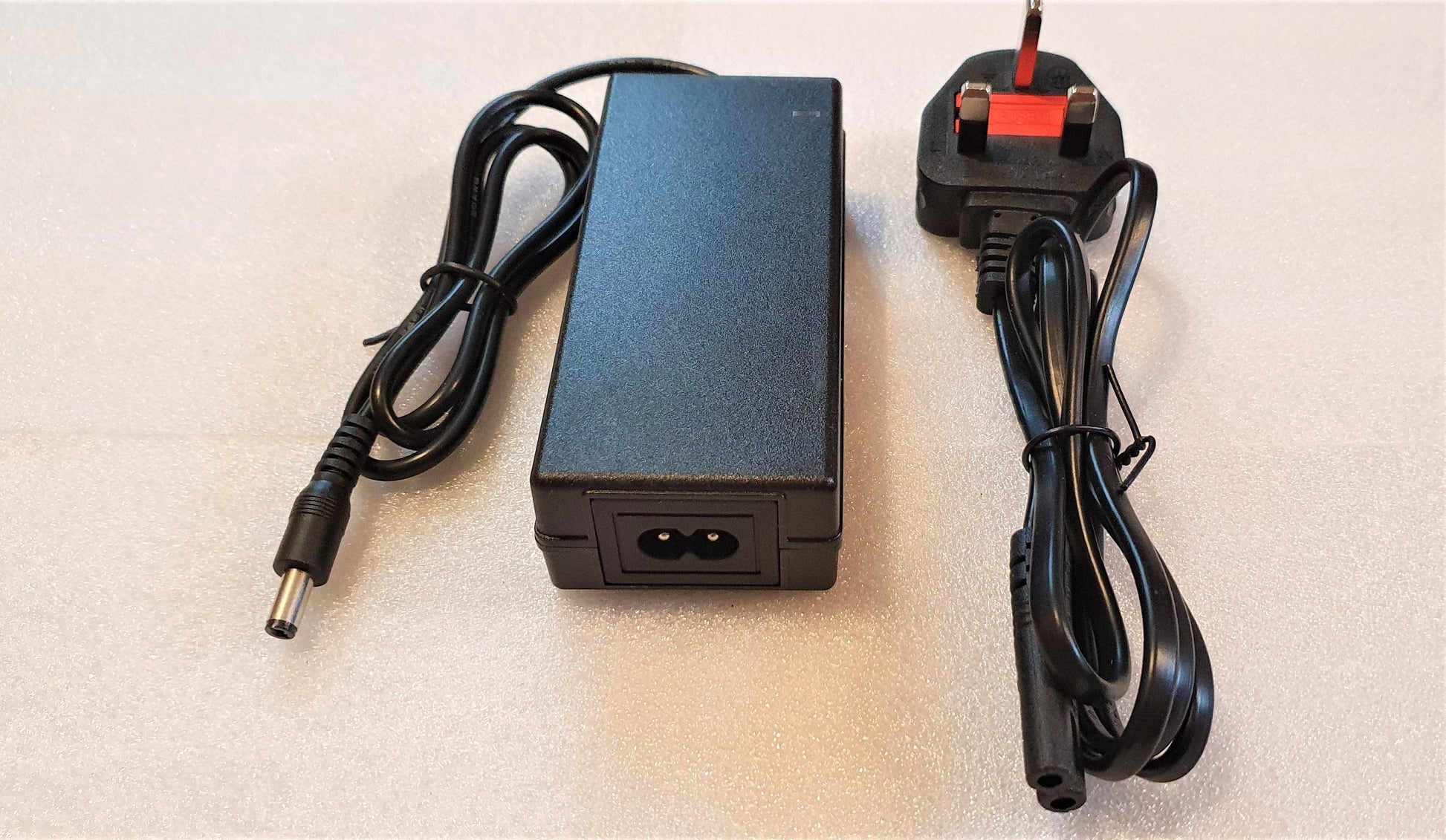

Lithium Battery Charger 8.4V - compatible with Carptechnics bait boat lithium batteries

5 In Stock

8.4V 2S Lithium Battery Charger -  for 8.4V Li-ion/LiPo battery pack;  UK, EU plug It has: constant voltage, constant current, over voltage, over current protection function; indicator light conversion; automatic recovery. Charging voltage: 8.4V          green light -  when fully charged or not connected.          red light...
-
+
£26.99

8.4V 2S Lithium Battery Charger -  for 8.4V Li-ion/LiPo battery pack;  UK, EU plug

It has: constant voltage, constant current, over voltage, over current protection function; indicator light conversion; automatic recovery.

Charging voltage: 8.4V

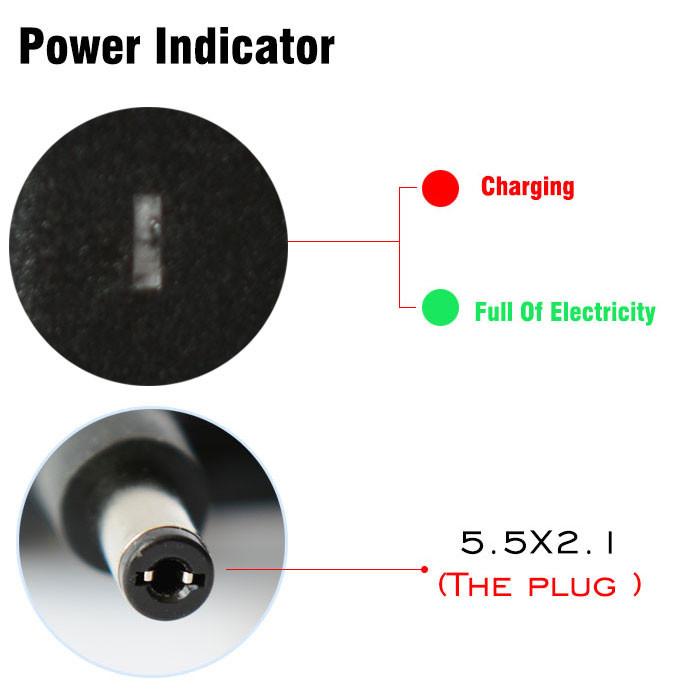

         green light -  when fully charged or not connected.

         red light - charging

Connectors:  default is DC 5.5x2.1 mm

                  but it can be modified upon request. Available XT30, XT60, Deans, Tamiya, Aviation 2P, 3P, and more. Ask before you order.


Output current,  3A / 4A, constant current charging, the indicator light is red
Conversion current, 300mA, after full conversion, the indicator light is green
Efficiency, >80% (maximum output voltage, full load)

Input voltage range, 220~ 240VAC; 47 ~ 63Hz;
Input current, 0.03A/230V
Overload protection, 105%~150%, Type: FOLDBACK current limit output Reset: automatic recovery
Temperature coefficient, ±0.03% °C (0 ~ 50 °C) OUTPUT
Working temperature, humidity, -10 ° C ~ +50 ° C, 20% ~ 90% RH
Storage temperature, temperature, -10 ° C ~ +60 ° C, 20% ~ 90% RH
Dimensions, 115 × 48 × 28mm
Weight, 160G
