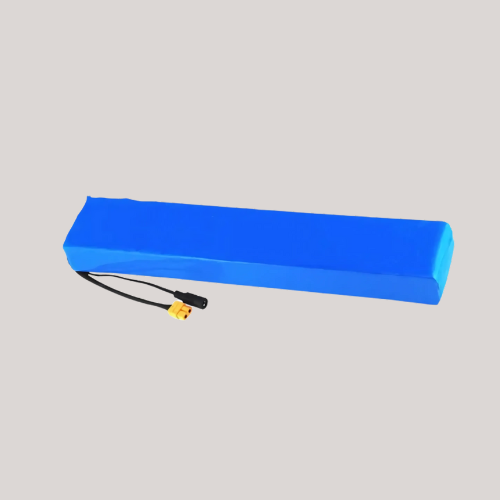

36 V 9Ah lithium battery, built in 15A BMS.

Battery Parameters:

Battery Model: 36V 9ah

Rated capacity (ah): 9ah

Rated voltage (V): 36 V

Technical description: 3.7 V 3.4ah / 18650

Cell combination: 3-parallel 10-series

Battery size: 267*36*67mm

Number of cells (parallel * series): 30 pcs.

Discharge voltage (V): 30 +/- 1 V

Charge voltage (V): 42 V

Rated discharge current (a): 15а

Instantaneous maximum discharge current (a): 30A

Maximum Continuous Discharge Current (A): 15a

Charge mode: CC / CV

Standard charge current (A): 2A

Charging time under Standard charge current: 4 h

Maximum Continuous Current Charge (A): 5A

Charging time with fast current charging: 2 h

Charge temperature range: 0-45 ° c

Range of discharge temperature: -20-60 ° c

Battery weight about: 1.5kg
